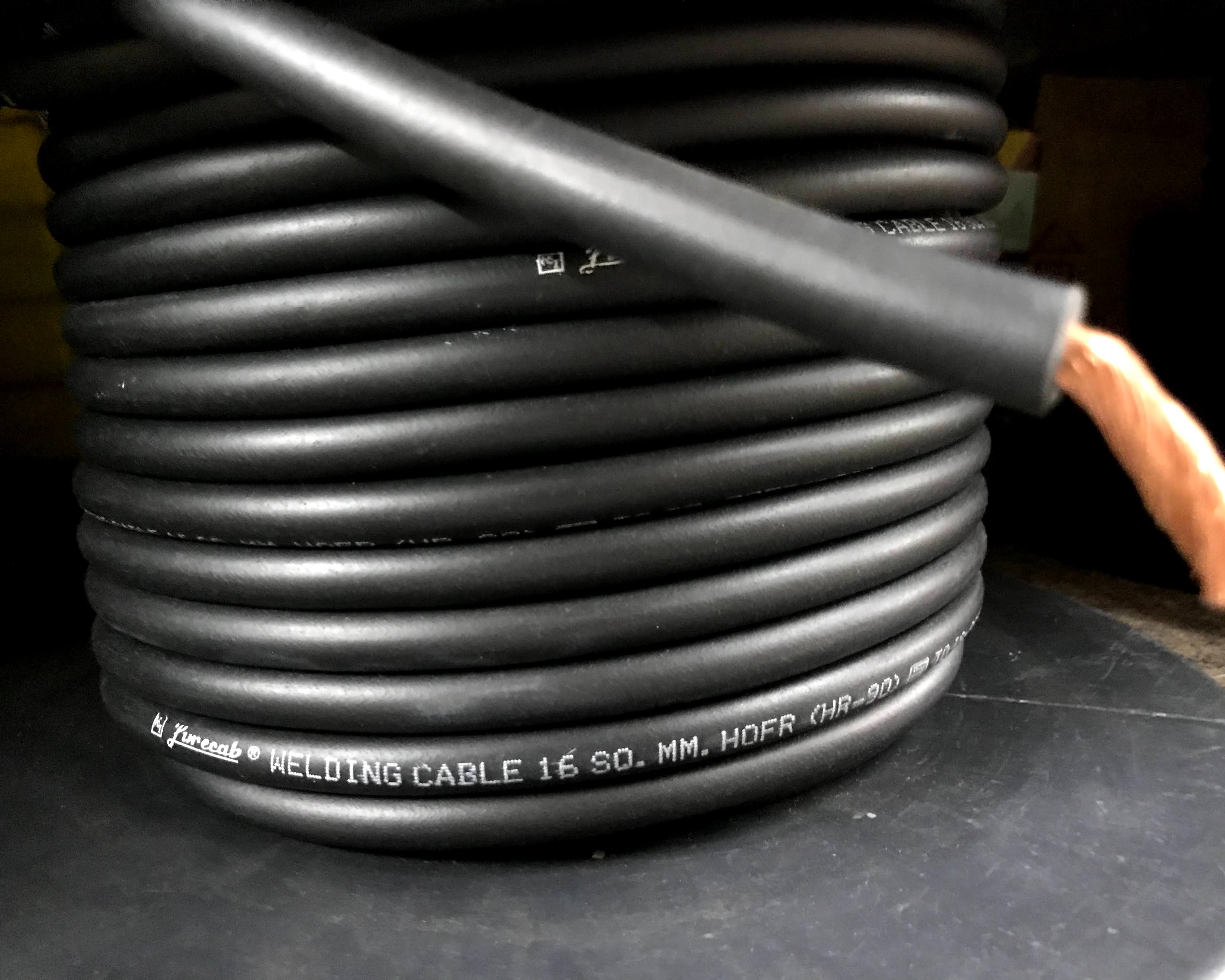

Product Overview: Purecab 16 sq mm HR-90
The Purecab 16 sq mm cable is a high-performance, single-core flexible cable specifically designed for arc welding applications. The 'HR-90' designation indicates it is Heat Resistant up to 90°C, making it suitable for heavy-duty industrial environments.
Technical Specifications
ParameterSpecification Details
Brand Purecab
Nominal Area 16 sq mm
Conductor Material High-conductivity Annealed Bare Copper (Bunched)
Insulation Type HR-90 (Heat Resistant) / HOFR (Heat & Oil Resistant, Flame Retardant)
Max. Conductor Temp. 90°C
Voltage Grade Up to 1100V
Current Carrying Capacity Approx. 120A – 135A (depending on duty cycle)
Standard Compliance IS 9857 (Indian Standard for Welding Cables)
Key Features
- High Flexibility: Designed with high strand counts (Class 6 type) to allow easy movement during manual welding.
- HOFR Properties: The outer jacket is typically Heat, Oil, and Flame Retardant, ensuring durability in workshops with sparks and oil spills.
- Durability: Resistance to abrasion and rough handling.
- Temperature Tolerance: Rated for $90^circtext{C}$ operation, preventing insulation degradation during long welding cycles.
Duty Cycle Performance (Approximate)
Welding cables are often rated based on their 'Duty Cycle.' For 16 sq mm copper cables, the current capacity varies:
- 100% Duty Cycle (Continuous): ~135 Amps
- 60% Duty Cycle: ~175 Amps
- 30% Duty Cycle: ~245 Amps
Note: Always ensure that the cable is marked with the ISI logo and the specific cross-sectional area (16 sq mm) for safety compliance on-site.
